TL;DR
Install an 11.25x23.25x2 filter with the airflow arrow pointing toward the blower, which means into the duct at a wall or ceiling return grille. The filter is actually 1.75 inches deep, so a little front-to-back play in a 2-inch slot is normal, but gaps around the edges are not. Check the fit every time you change it.
The rule I give every homeowner is simple: the arrow follows the air. Air moves from your rooms through the filter and into the furnace or air handler, so point the arrow that way and seat the filter flat.
Key Takeaways
• Point the arrow toward the blower: into the wall or ceiling at a return grille, toward the cabinet at a furnace.
• Actual size is 11.25 x 23.25 x 1.75 inches: only the 2-inch depth is rounded on the label.
• Gaps defeat the filter: air that slips around the edges carries dust straight to the coil.
• Replace it about every 90 days: sooner with pets, allergies, or heavy cooling use
.
What Size Is an 11.25x23.25x2 Filter?
An 11.25x23.25x2 filter measures 11.25 by 23.25 inches across the face and 1.75 inches deep. The face dimensions are exact; only the depth is rounded up so the frame slides into a 2-inch slot.
Because the face is exact, the filter should fill the opening edge to edge. My rule of thumb: a gap wider than about 1/8 inch on any side means the slot was built for a different size.
The most common mistake I see is reordering whatever was in the slot, even if it never fit. Measure the slot opening itself, and check each return separately if your home has more than one, since they can take different sizes.
Which Way Does the Arrow Go on a 2-Inch Filter?
The arrow points the way air moves: away from the room and toward the blower in your furnace or air handler. Where the filter sits determines what that looks like:
• Wall or ceiling return grille: into the wall or ceiling.
• Upflow furnace (return at the bottom or side): toward the furnace cabinet.
• Downflow furnace (return at the top): down.
• Horizontal unit in an attic or crawlspace: sideways, toward the unit.
If the label is worn, hold a tissue near the open slot with the fan running; it gets pulled the way the arrow should point. Direction matters because a pleated filter’s supported side is built to face downstream. Installed backward, the pleats can bow under suction, and that bowing is the first clue I look for.

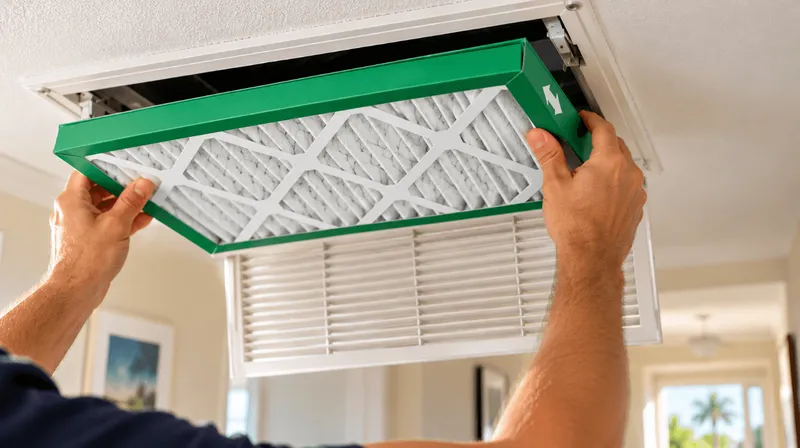

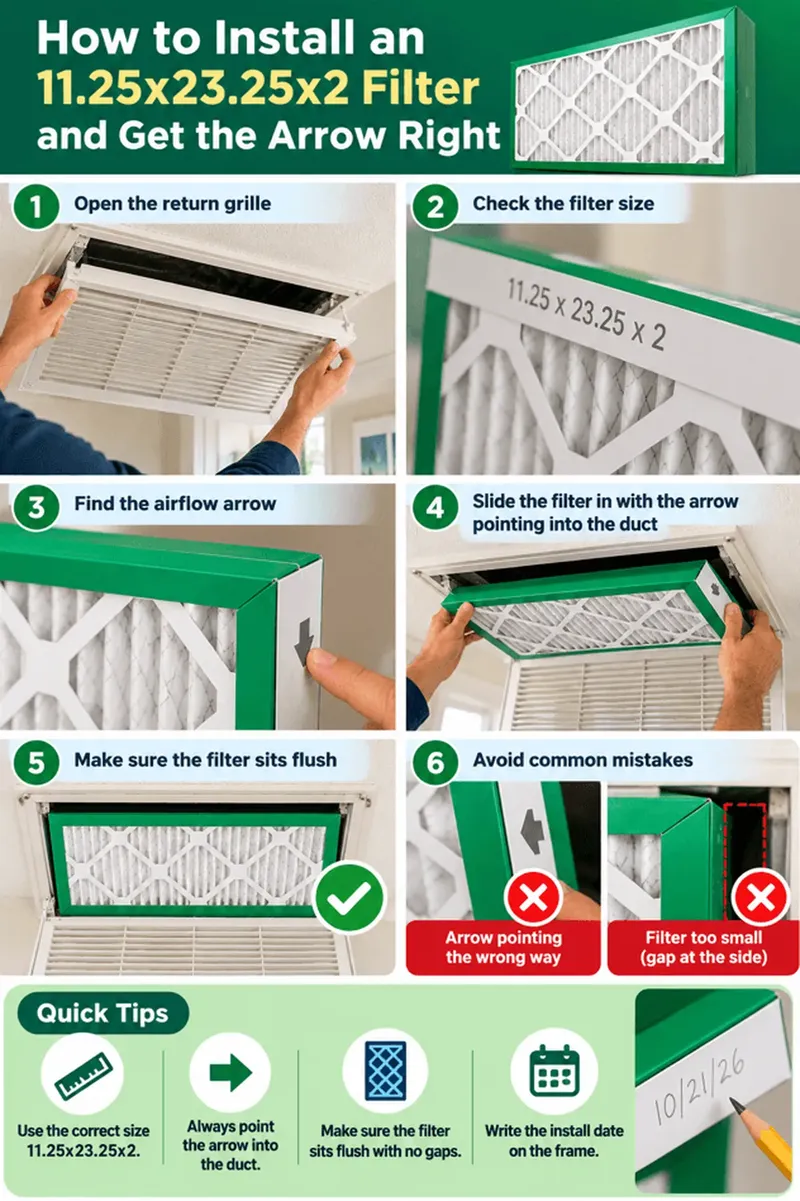

How Do You Install an 11.25x23.25x2 Filter in a Return Grille?
Turn the system off, insert the new filter with the arrow pointing into the wall or ceiling, and confirm all four edges sit flat. The job takes about five minutes.
1. Turn off the system at the thermostat so the fan doesn’t pull dust past the open grille.
2. Open the grille by releasing the thumb latches or quarter-turn screws, then lower the door slowly.
3. Slide the old filter out straight and note its arrow and printed size.
4. Wipe the frame channel so lint doesn’t keep the new filter from sitting flat.
5. Insert the new filter with the arrow pointing away from the room until all four edges rest against the frame.
6. Close the grille. If the door bulges or presses on the filter, it’s crooked or the wrong size.
7. Date the filter frame and draw an airflow arrow on the grille frame for next time, then turn the system back on.
How Do You Install an 11.25x23.25x2 Filter in a Furnace Slot or Filter Rack?
Shut off power, slide the filter along the rails with the arrow toward the blower, and reseal the cover. The steps are the same for a covered duct slot and a rack beside the cabinet.
1. Switch off power at the thermostat, then at the service switch near the furnace.
2.Remove the slot cover or rack door and pull out the old filter, noting its arrow.
3. Check for spacers. Racks built for 4- or 5-inch media need spacers for a 2-inch filter, or it will rattle and leak.
4. Insert the new filter along the guide rails, arrow toward the blower, until the far edge meets the back stop.
5. Replace the cover so it seals all the way around, then restore power. A whistle near the slot means air is slipping past.
If the rack sits in a cramped attic or the cover is sealed with foil tape, call a local technician. Leaving the door off lets dusty attic air into the system.

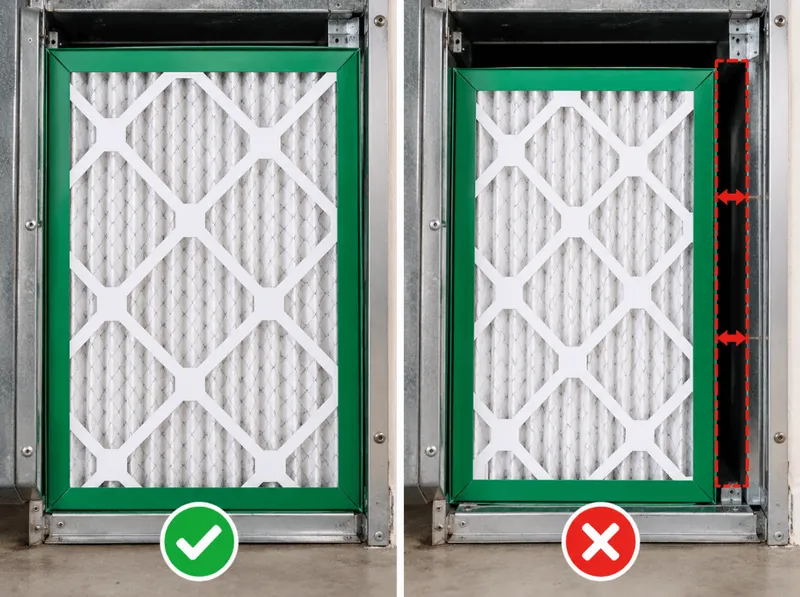

How Do You Check That an 11.25x23.25x2 Filter Fits?
A correctly installed filter passes three checks: no visible gap, no side-to-side rattle, and no bowing when the fan runs. The EPA’s Guide to Air Cleaners in the Home says a filter should fit snugly without bending or crushing so air doesn’t leak around it. According to the Department of Energy, that bypass air deposits dirt directly on the evaporator coil and reduces its ability to absorb heat.
• Gap check: no bare metal or open duct is visible around the edges.
• Shake check: slight front-to-back play is normal for a 1.75-inch filter; side-to-side movement is not.
• Running check: with the fan on, the pleats stay flat and nothing whistles.
Why Is My 11.25x23.25x2 Filter Loose in the Slot?
A loose 11.25x23.25x2 filter almost always means a size mismatch, not a bad filter. Work through these causes:
• Wrong face size: if the opening is noticeably larger than 11.25 x 23.25 inches, you need a different filter size.
• Deep rack: install the spacer kit or use the correct thicker filter.
• Damaged frame: a crushed corner leaves a gap, so swap the filter rather than forcing it.
• Worn gaskets: replace the gasket on the rack, and never tape over the pleats.
If the size is right and air still leaks, the opening may be out of square, which no filter can seal. That is a job for an HVAC technician.
What Does Your Old Filter Tell You?
The dust pattern on your old filter shows how well it fit and how quickly your home loads it.
• Dark outline along the edges: air bypassed the filter. Find the gap before installing the new one.
• Pleats bowed toward the blower: it was clogged or backward. Check the arrow and change sooner.
• Even gray loading: normal. Your fit and schedule are working.
• Heavy loading in under a month: pets or a leaky return duct are adding dust. Check monthly until you learn your home’s pace.
Which MERV Rating Should You Choose for an 11.25x23.25x2 Filter?
For most homes, a pleated MERV 8, 11, or 13 filter is the right choice. MERV 8 handles everyday dust and lint, MERV 11 is a step up for pollen and pet dander, and MERV 13 catches finer particles such as smoke.
Near-miss sizes are the bigger trap, since a store-shelf filter that’s close will slide in and still leave a gap. U.S. manufacturer and online retailer of HVAC air filters based in Talladega, Alabama, lists the 11.25x23.25x2 with an actual size of 11.25 x 23.25 x 1.75 inches in MERV 8, 11, and 13, according to Filterbuy’s 11.25x23.25x2 filter page.
“On filter calls, the problem is rarely the brand. It’s a filter installed backward, or one that doesn’t fill the opening. Both choke airflow, and both take under a minute to fix.”
Essential Resources on “11.25x23.25x2 Air Filters”
1. Confirm the Exact Size and Order the Right Filter
Filterbuy’s 11.25x23.25x2 filter page lists the actual size, the MERV 8, 11, and 13 options, and change intervals for homes with pets or allergies.
2. Understand What MERV Numbers Mean
The EPA’s MERV rating explainer shows which particle sizes each MERV level captures and when a MERV 13 upgrade makes sense.
3. Get a Snug, Leak-Free Fit
The EPA Guide to Air Cleaners in the Home explains why a filter has to fit snugly and how often to replace it.
4. Lower Cooling Costs With a Clean Filter
The Department of Energy’s air conditioner maintenance guide covers filter care and the signs that it’s time to call a technician.
5. Know What a Seasonal Tune-Up Should Cover
The ENERGY STAR maintenance checklist separates the monthly filter check you can do yourself from the work a contractor should handle each spring and fall.
6. Build a Year-Round Efficiency Routine
The ENERGY STAR Heat & Cool Efficiently guide recommends checking your filter monthly and changing it at least every 3 months, alongside yearly tune-ups and duct sealing.
7. Go Deeper on Home Air Filtration
The EPA’s air cleaners and air filters hub links to the agency’s consumer guide and a longer technical summary on home filtration.
Supporting Statistics
Heating and Cooling Use Nearly Half of Home Energy
ENERGY STAR reports that nearly half of a home’s energy goes to heating and cooling, and a dirty filter forces that system to work harder.
Source: ENERGY STAR, Heat & Cool Efficiently
A Clean Filter Can Cut AC Energy Use by 5% to 15%
The U.S. Department of Energy says replacing a dirty, clogged filter with a clean one can lower an air conditioner’s energy consumption by 5% to 15%.
Source: U.S. Department of Energy, Maintaining Your Air Conditioner
MERV 13 Captures at Least 50% of the Finest Particles Tested
The EPA rates MERV 13 filters at 50% or better capture of particles from 0.3 to 1.0 microns, a size range MERV 8 isn’t rated for.
Source: EPA, What Is a MERV Rating?
Final Thoughts
Most filter problems come down to the arrow and the fit. Point the arrow toward the blower, make sure the filter fills the opening edge to edge, and read the old filter each time you change it. Those habits protect your equipment and your energy bill.
Next Steps
1. Pull your current filter and confirm the size printed on the frame.
2. Check that the arrow points toward the blower.
3. Run the fit check for gaps, rattle, and bowing.
4. Set a monthly reminder to inspect the filter, and replace it about every 90 days.
Frequently Asked Questions
Can I use a 1-inch filter in a 2-inch slot?
No. A 1-inch filter will shift and leave a front-to-back gap that lets air bypass the edges, so use the 2-inch filter the slot was built for.
How often should I change an 11.25x23.25x2 filter?
Replace it about every 90 days and check it monthly. Filterbuy suggests every 2 months in homes with pets and every 6 weeks when someone has asthma or allergies.
What if my 11.25x23.25x2 filter has no arrow?
Face the side with wire mesh or stiffer backing toward the blower, since that supported side belongs downstream. If you can’t tell, use the tissue test and draw your own arrow on the frame.
Is MERV 13 too restrictive for my system?
Usually not. The EPA says most furnaces and HVAC systems can handle a MERV 13 filter if it’s replaced frequently, but a technician can confirm what your system fan supports.
Where can I buy an 11.25x23.25x2 filter?
Local stores may not carry this size, so ordering online is often easier. Filterbuy sells the 11.25x23.25x2 in MERV 8, 11, and 13 and notes that local stock can be limited.
Get the Right Filter
When it’s time to replace yours, order an 11.25x23.25x2 filter from a listing that states the actual 1.75-inch depth, as Filterbuy’s does, and keep a spare on hand so the next change happens on schedule. If your slot doesn’t fit standard sizes or keeps leaking, book a local AC check-up.
